NEMA Motors

Description

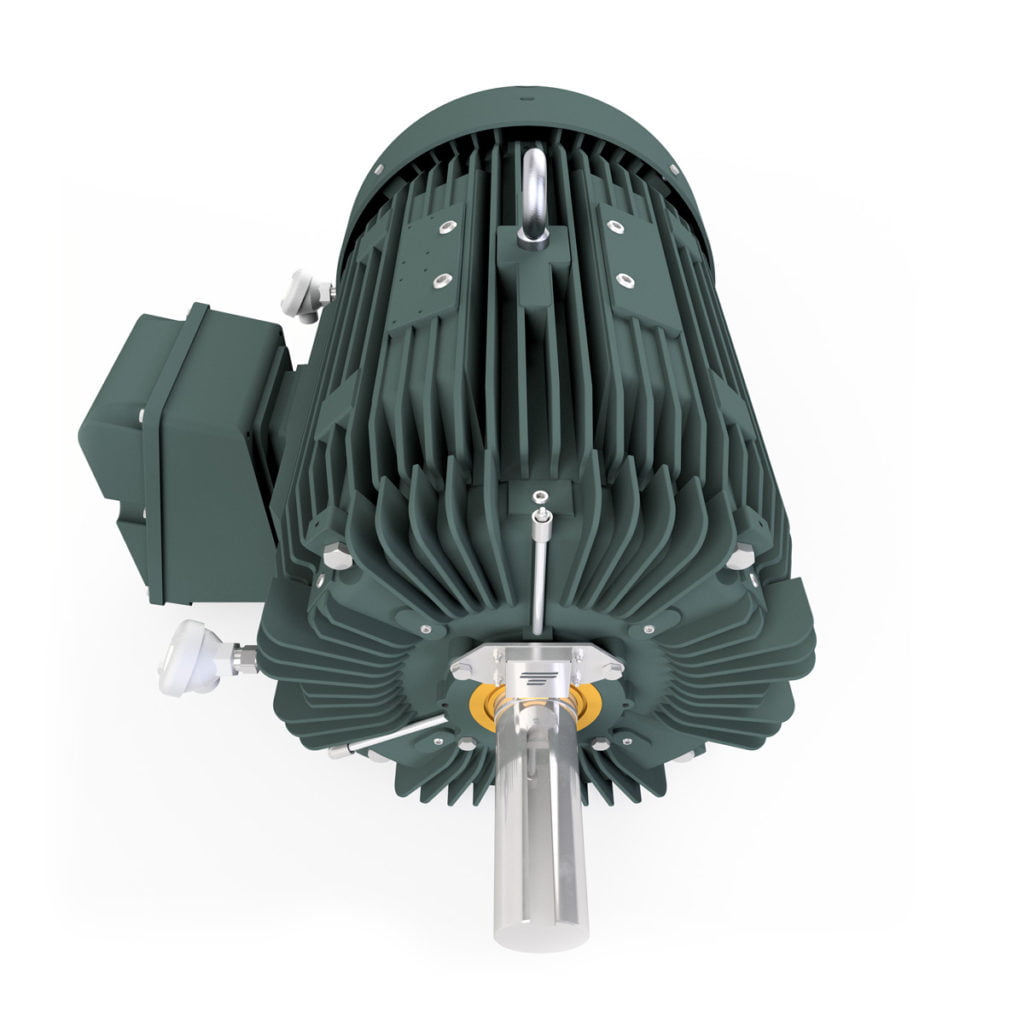

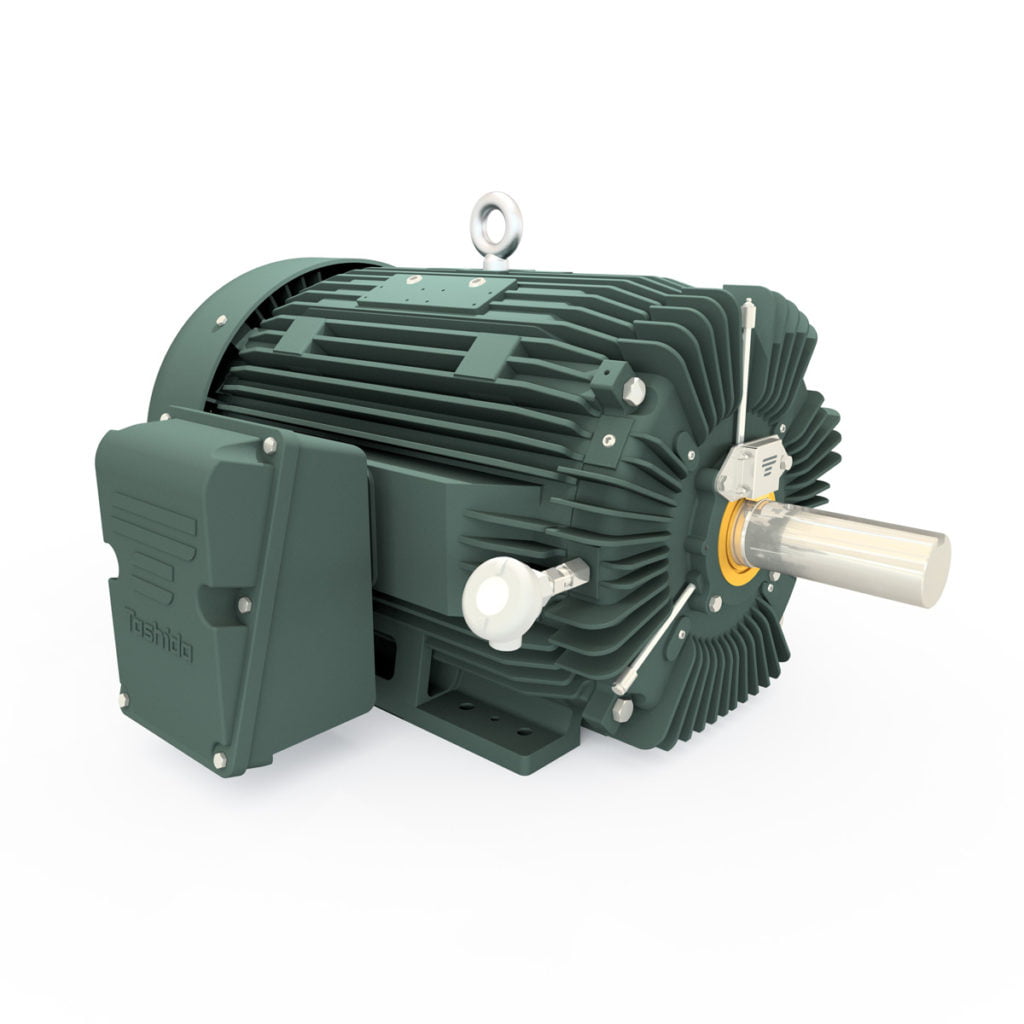

Tashida NEMA Standard Electric Motors are designed to provide exceptional performance and long life in harsh industrial processing applications, include features designed to protect against contamination, moisture, vibration, and corrosion. These motors are premium efficient electrical designs which are built to handle demanding duty cycles, provide high starting and peak torques, and operate over wide speed ranges.

Tashida NEMA motors provide safe, long operating life, reliable performance, and reduced energy consumption in the toughest applications. These motors are capable of withstanding extreme low and high temperatures and will operate in high altitude where the air is thinner.

Tashida NEMA motors are ideal for applications in petrochemical plants, mines, foundries, pulp and paper plants, rock crushers, and chemical plants. They are available with a wide selection of application-matched modifications to meet specific needs, ambient conditions, and installation requirements.

Features

• Frame Size: 143~449T
• Rated Power: 0.75HP~400HP
• Enclosure: TEFC
• Speed: 2, 4 & 6 poles
• Voltage: 190/380V – 230/460V
• Frequency: 50/60Hz
• Insulation: Class F
• Inverter Duty per NEMA MG1, Table 12-12
• Temperature Rise: Class B @ 1.0 SF
• Efficiency: NEMA Premium
• Service Factor: 1.15
• Protection Degree: IP55 / IP56
• Oversized Bearings
