Metric IEC Motors

Description

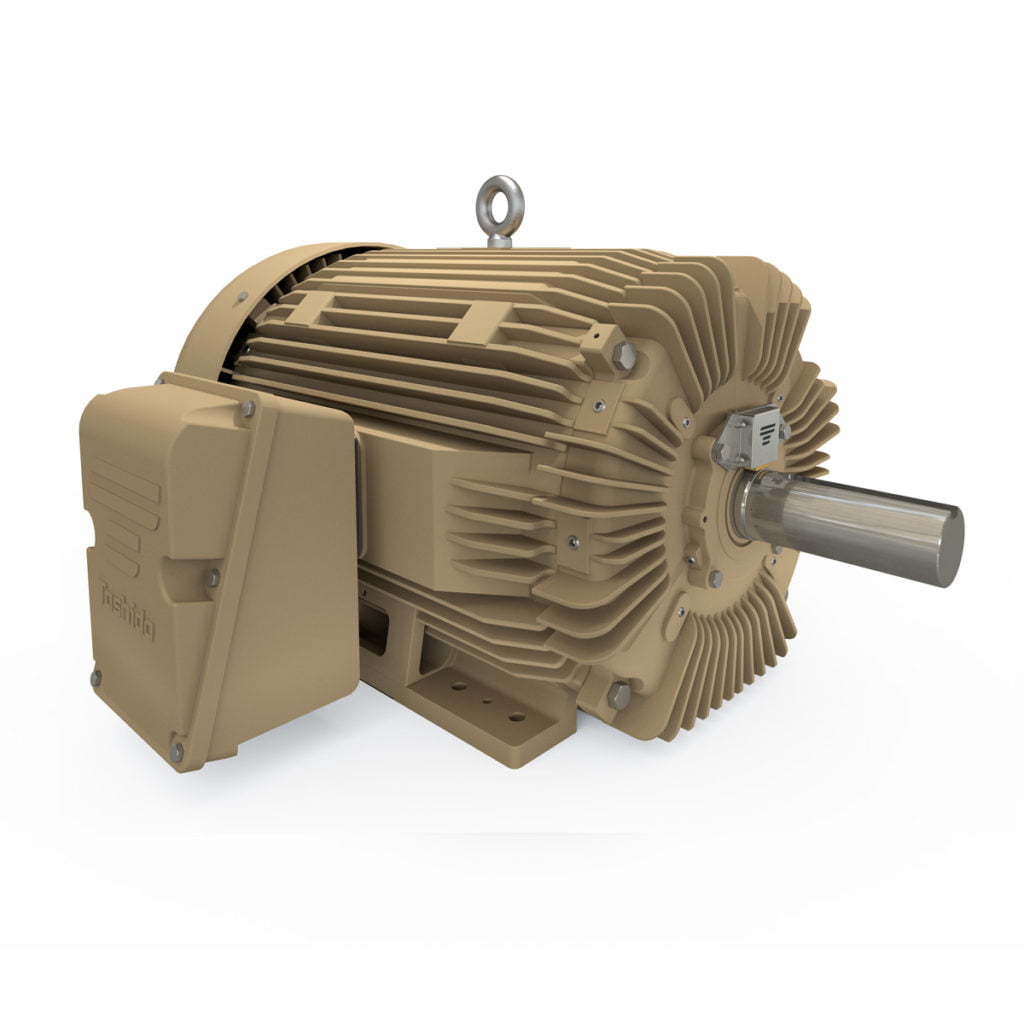

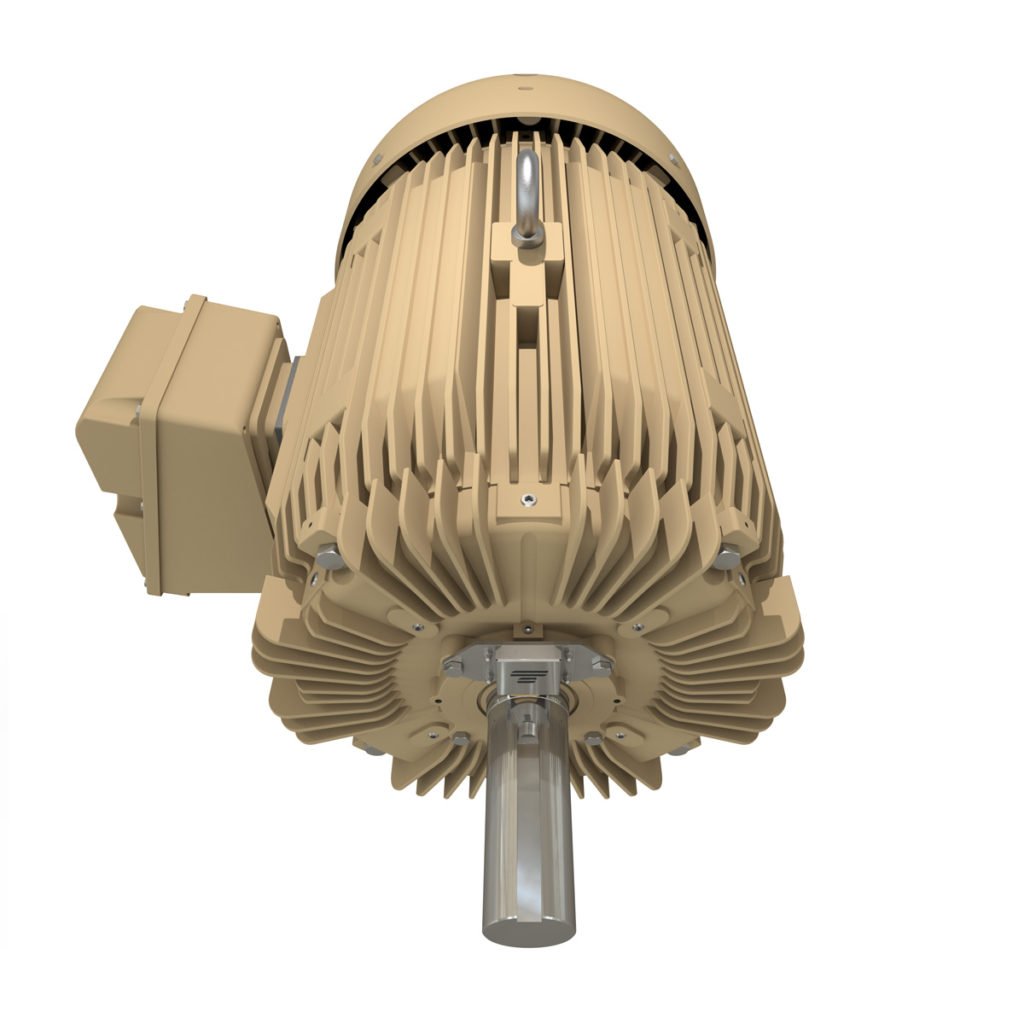

Tashida IEC Standard Electric Motors are designed to meet International Electrotechnical Commission (IEC) standards for the global markets. Tashida IEC motor is a state-of-the-art product designed to meet the IE3 efficiency standard and exceed the competitive demands of the global market while maintaining the high reliability and quality expected of a Tashida product. Select from B3, B35 or B34 mounting to be used on a variety of applications from pumps, conveyors, fans and more.

The IEC series is ideal for working in all types of industries such as: pharmaceutical, chemical, food & beverage, mining, petrochemical, sugar mills, pulp & paper and industrial in general.

Features

• Frame Size: 80~355
• Rated Power: 0.37kW~375kW.
• Cooling Type: IC 411 / TEFC
• Speed: 2, 4 & 6 poles
• Voltage: 220/380V/440V
• Frequency: 50/60Hz
• Insulation: Class F
• Temperature Rise: Class B @ 1.0 SF
• Efficiency: IE3
• Service Factor: 1.15
• Protection Degree: IP55
• Inverter Duty per IEC 60034-25
• Oversized Bearings
